6110.3300 | SCHURTER

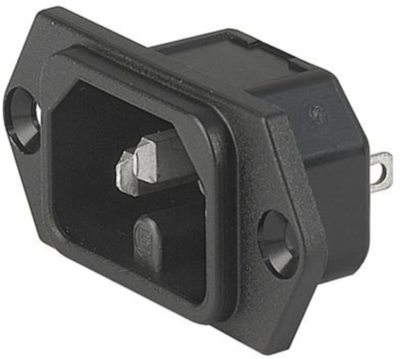

Panel plug C16, 3 pole, screw mounting, plug-in connection, black, 6110.3300
Unit Price (€ / pc.)
1.2495 € *
Available: 2 pcs.
Next delivery: 100 pcs. on 2025-10-03
Total Price:
1.25 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2495 €
10 pcs.
1.1543 €
50 pcs.
1.0591 €
100 pcs.
0.9401 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug, 6110.3300, SCHURTER
IEC Appliance Inlet C16, Screw-on mounting, Quick-connect terminals.
Features
- Panel mountable
- 1 Function
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 2
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 250 V | |
| Rated voltage IEC | 250 V | |
| Pin number | 3 pole | |
| Power switch available | No | |
| Colour | black | |
| Rated current UL/CSA | 15 A | |
| Connection | plug-in connection | |
| Assembly | screw mounting | |
| Fuse holder present | No | |
| Line filter present | No | |
| Pin temperature | 120 °C | |
| Panel thickness | 8 mm | |
| Design | straight | |
| Rated current IEC | 10 A | |
| IEC designation | C16 | |
| Switch illuminated | No | |
| Product type | panel plug |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85366990 |
| Country of origin | CH |
| Original Packaging | Carton with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
