6100.4325 | SCHURTER

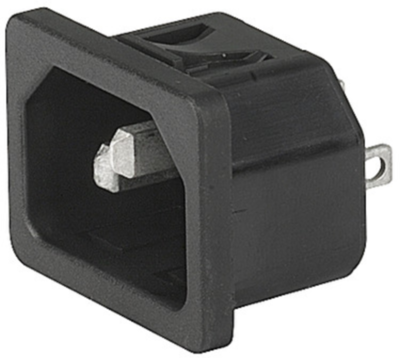

Panel plug C14, 3 pole, snap-in, plug-in connection, black, 6100.4325
Unit Price (€ / pc.)
0.9877 € *
Available: 130 pcs.
Total Price:
0.99 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9877 €
10 pcs.
0.9163 €
50 pcs.
0.8449 €
100 pcs.
0.7735 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug, 6100.4325, SCHURTER
IEC Appliance inlet C14, Snap-in mounting, Front Side, Quick-connect terminals.
Features
- Panel mountable
- 1 Function
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current IEC | 10 A | |
| Panel thickness | 2.5 mm | |
| Type of locking | No | |
| Rated voltage UL/CSA | 250 V | |
| Switch illuminated | No | |
| Colour | black | |
| Line filter present | No | |
| Power switch available | No | |
| IEC designation | C14 | |
| Connection | plug-in connection | |
| Rated current UL/CSA | 15 A | |
| Pin number | 3 pole | |
| Pin temperature | 70 °C | |
| Product type | panel plug | |
| Rated voltage IEC | 250 V | |
| Design | straight | |
| Fuse holder present | No | |
| Assembly | snap-in |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 50 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
