6100.3200.32 | SCHURTER
Plug C14, 3 pole, screw mounting, plug-in connection, black, 6100.3200.32
Unit Price (€ / pc.)
7.9968 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
8.00 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9968 €
10 pcs.
7.2828 €
50 pcs.
6.6997 €
100 pcs.
6.0214 €
*incl. VAT plus shipping costs
Subject to prior sale

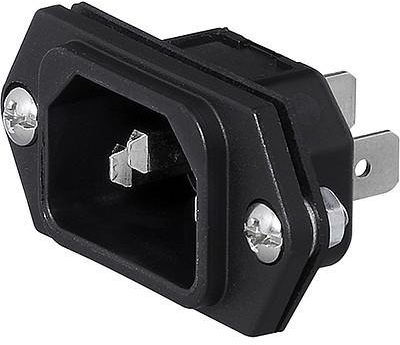

Plug, 6100.3200.32, SCHURTER
IEC Appliance inlet C14, Screw-on Mounting, Quick-connect terminals.
Features
- Panel mountable
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Switch illuminated | No | |
| Colour | black | |
| Pin temperature | 70 °C | |
| Type of locking | No | |
| Rated current UL/CSA | 15 A | |
| Assembly | screw mounting | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated voltage IEC | 250 V | |
| IEC designation | C14 | |
| Fuse holder present | No | |
| Panel thickness | 8 mm | |
| Pin number | 3 pole | |
| Version | plug | |
| Design | straight | |
| Power switch available | No | |
| Connection | plug-in connection | |
| Line filter present | No |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 50 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
