4798.9200 | SCHURTER

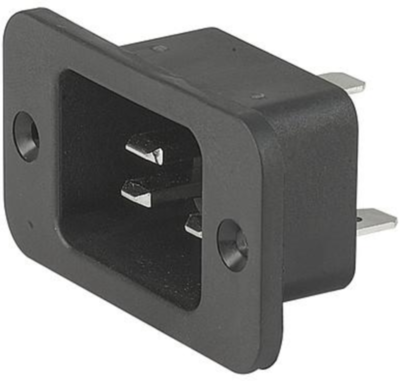

Panel plug C20, 3 pole, screw mounting, solder connection, black, 4798.9200
Unit Price (€ / pc.)
1.7850 € *
Next delivery: 200 pcs. on 2025-11-07
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7850 €
10 pcs.
1.6422 €
50 pcs.
1.4994 €
100 pcs.
1.3447 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug, 4798.9200, SCHURTER
IEC Appliance inlet C20, Screw-on mounting, Front side, Solder terminals.
Features
- V-Lock notch standard
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | screw mounting | |
| Rated current IEC | 16 A | |
| Colour | black | |
| Connection | solder connection | |
| Power switch available | No | |
| Pin number | 3 pole | |
| Line filter present | No | |
| IEC designation | C20 | |
| Rated voltage IEC | 250 V | |
| Rated current UL/CSA | 20 A | |
| Rated voltage UL/CSA | 250 V | |
| Panel thickness | 8 mm | |
| Fuse holder present | No | |
| Product type | panel plug | |
| Design | straight | |
| Switch illuminated | No | |
| Pin temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85366990 |
| Country of origin | CN |
| Original Packaging | Carton with 100 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
