4798.9000 | SCHURTER

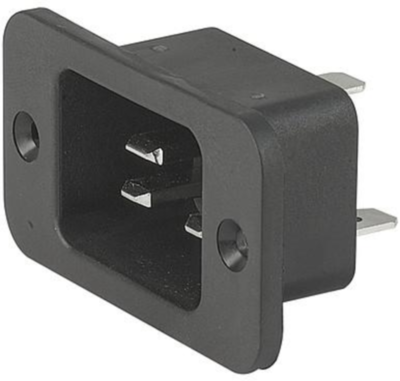

Panel plug C20, 3 pole, screw mounting, plug-in connection, black, 4798.9000
Unit Price (€ / pc.)
2.1896 € *
Available: 1,057 pcs.
Next delivery: 600 pcs. on 2025-11-14
Total Price:
2.19 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1896 €
25 pcs.
1.8564 €
100 pcs.
1.7136 €
200 pcs.
1.6422 €
800 pcs.
1.4994 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug, 4798.9000, SCHURTER
IEC Appliance inlet C20, Screw-on mounting, Front side, Quick-connect terminals.
Features
- V-Lock notch standard
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Fuse holder present | No | |
| Rated current IEC | 16 A | |
| Rated voltage UL/CSA | 250 V | |
| Connection | plug-in connection | |
| Rated voltage IEC | 250 V | |
| Pin temperature | 70 °C | |
| Switch illuminated | No | |
| Product type | panel plug | |
| IEC designation | C20 | |
| Assembly | screw mounting | |
| Panel thickness | 8 mm | |
| Rated current UL/CSA | 20 A | |
| Pin number | 3 pole | |
| Power switch available | No | |
| Line filter present | No | |
| Design | straight | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Carton with 100 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
