4796.0000 | SCHURTER

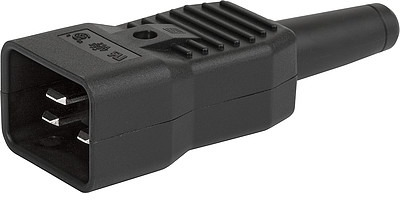

Plug I, 3 pole, cable assembly, screw connection, 1.5 mm², black, 4796.0000
Unit Price (€ / pc.)
8.8655 € *
Available: 165 pcs.
Total Price:
8.87 € *
Price list
Quantity
Price per unit*
1 pcs.
8.8655 €
10 pcs.
7.8064 €
50 pcs.
7.2709 €
150 pcs.
6.9615 €
500 pcs.
6.5926 €
*incl. VAT plus shipping costs
Subject to prior sale

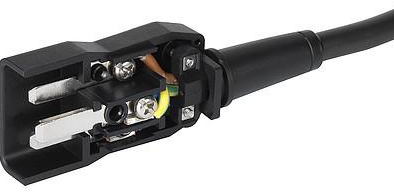

IEC cord connectors with horizontal contacts, type Schurter 4796.
Ideal for high-current applications, with screw connection and anti-kink bushing, 2-pole + PE, 16 A/250 V (UL/CSA 21 A/250 V), temperature up to +70 °C; Housing: thermoplastic in accordance with UL 94 V-0, design in accordance with IEC/EN 60320-2-2/1. Certifications: VDE, UL, CSA.
Type: 4796.0000, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Connection | screw connection | |
| Rated current IEC | 16 A | |
| Pin number | 3 pole | |
| Product type | plug | |
| Rated current UL/CSA | 20 A | |
| Cable diameter | 10 mm | |
| Fuse holder present | No | |
| Switch illuminated | No | |
| Line filter present | No | |
| Type of locking | No | |
| IEC designation | I | |
| Power switch available | No | |
| Pin temperature | 70 °C | |
| Rated voltage UL/CSA | 250 V | |
| Assembly | cable assembly | |
| Cable cross-section | 1.5 mm² | |
| Design | straight | |
| Rated voltage IEC | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
