4790.1100 | SCHURTER
Jack C19, 3 pole, cable assembly, screw connection, 1.5 mm², black, 4790.1100
Unit Price (€ / pc.)
8.0325 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
8.03 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0325 €
10 pcs.
7.3185 €
50 pcs.
6.7235 €
100 pcs.
6.0452 €
*incl. VAT plus shipping costs
Subject to prior sale

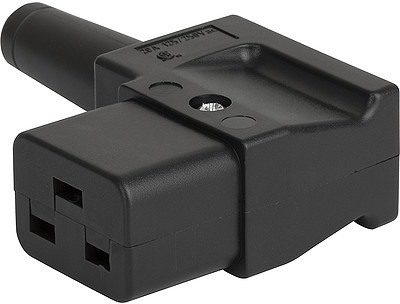

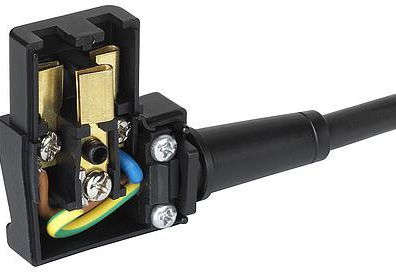

Jack, 4790.1100, SCHURTER
IEC Connector C19, Rewireable, Angled.
Features
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage IEC | 250 V | |
| Pin temperature | 70 °C | |
| Power switch available | No | |
| Colour | black | |
| Assembly | cable assembly | |
| Rated voltage UL/CSA | 250 V | |
| Rated current UL/CSA | 20 A | |
| Cable diameter | 8 mm | |
| Fuse holder present | No | |
| Design | angled | |
| IEC designation | C19 | |
| Connection | screw connection | |
| Switch illuminated | No | |
| Product type | jack | |
| Pin number | 3 pole | |
| Rated current IEC | 16 A | |
| Cable cross-section | 1.5 mm² | |
| Line filter present | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 50 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
