4789.1200 | SCHURTER

Plug I, 3 pole, cable assembly, screw connection, 1.5 mm², black, 4789.1200

Order No.: 59P6780
EAN: 4099889867138
MPN:
4789.1200
Series: 4789

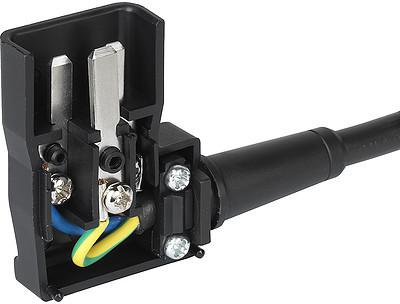

4789.1200 SCHURTER Device Connectors Image 1

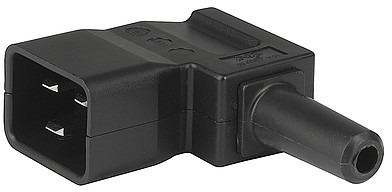

4789.1200 SCHURTER Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.7588 € *
Available: 96 pcs.
Leadtime: 9 Weeks **
Total Price:
7.76 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7588 €
5 pcs.
7.1400 €
*incl. VAT plus shipping costs
**Subject to prior sale

Plug, 4789.1200, SCHURTER

IEC Plug I, Cord connector (Rewireable), Angled.

Features

  • 1 Function
  • Housing material: Thermoplastic, UL 94V-0
  • Protection class: 1
Technical specifications
Switch illuminated No
Colour black
Pin temperature 70 °C
Cable diameter 10.4 mm
Rated current UL/CSA 20 A
Assembly cable assembly
Rated voltage UL/CSA 250 V
Rated current IEC 16 A
Rated voltage IEC 250 V
IEC designation I
Fuse holder present No
Cable cross-section 1.5 mm²
Pin number 3 pole
Version plug
Design angled
Power switch available No
Connection screw connection
Line filter present No
Logistics
Country of origin CN
Customs tariff number 85366990
MSL MSL 1
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
