4788.7100 | SCHURTER

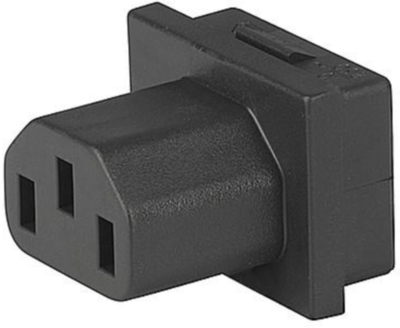

Panel socket F, 3 pole, snap-in, plug-in connection, black, 4788.7100
Order No.: 59P6776
EAN: 4099889867091
MPN:
4788.7100
This item is no longer available.
As an alternative, we recommend the following item:

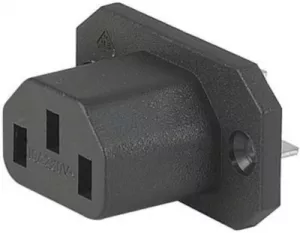

Panel socket F, 3 pole, screw mounting, solder connection, black, 4787.1000
Order No.: 59P6765
Manufacturer: SCHURTER
per pc. 1.4637 € *
Plug, 4788.7100, SCHURTER
IEC Appliance outlet F, Snap-in mounting, Front side, Quick-connect terminals.
Features
- Panel mountable
- 1 Function
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Fuse holder present | No | |
| Rated current IEC | 10 A | |
| Rated voltage UL/CSA | 250 V | |
| Connection | plug-in connection | |
| Rated voltage IEC | 250 V | |
| Pin temperature | 70 °C | |
| Switch illuminated | No | |
| Product type | panel socket | |
| IEC designation | F | |
| Assembly | snap-in | |
| Panel thickness | 3 mm | |
| Rated current UL/CSA | 15 A | |
| Type of locking | No | |
| Pin number | 3 pole | |
| Power switch available | No | |
| Design | straight | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Carton with 100 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
