4785.0100 | SCHURTER

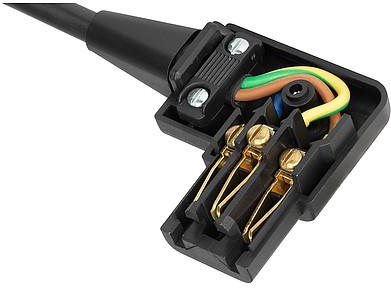

Jack C13, 3 pole, cable assembly, screw connection, 1.5 mm², black, 4785.0100
Unit Price (€ / pc.)
4.2126 € *
Available: 844 pcs.
Total Price:
4.21 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2126 €
10 pcs.
3.7247 €
100 pcs.
3.2606 €
200 pcs.
3.1416 €
800 pcs.
2.9274 €
*incl. VAT plus shipping costs
Subject to prior sale

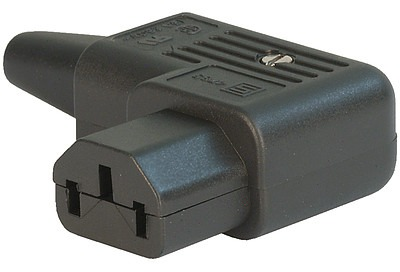

IEC cord connectors, angled, type Schurter 4785.
To IEC/EN 60320-1, for cable assembly; Pin temperature: up to +70 °C, 2-pole + ground contact, 10 A/250 VAC (IEC), 15 A/250 VAC (UL/CSA). Connection: screw terminals, suitable for equipment of safety class I to IEC 61140. Housing material: thermoplastic, UL 94 V-0, black. Certifications: VDE, cULus.
Technical attributes (type, max. cable diameter, max. conductor cross-section): 4785.0100, 10 mm, 3 x 1.5 mm² (AWG 14)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 250 V | |
| Rated voltage IEC | 250 V | |
| Pin number | 3 pole | |
| Power switch available | No | |
| Colour | black | |
| Rated current UL/CSA | 15 A | |
| Cable cross-section | 1.5 mm² | |
| Connection | screw connection | |
| Assembly | cable assembly | |
| Fuse holder present | No | |
| Line filter present | No | |
| Pin temperature | 70 °C | |
| Design | angled | |
| Rated current IEC | 10 A | |
| Cable diameter | 10 mm | |
| IEC designation | C13 | |
| Type of locking | No | |
| Switch illuminated | No | |
| Product type | jack |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
| Original Packaging | Carton with 100 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
