4781.0000 | SCHURTER

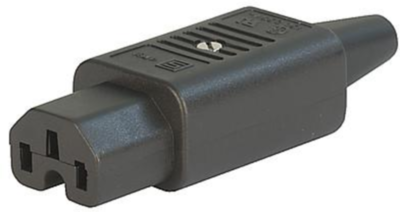

Jack C15, 3 pole, cable assembly, screw connection, 1.0 mm², black, 4781.0000

Order No.: 59P6761
EAN: 4099889866940
MPN:
4781.0000
Series: 4781
4781.0000 SCHURTER Device Connectors
Image may differ
Unit Price (€ / pc.)
3.6771 € *
Available: 48 pcs.
Total Price:
3.68 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6771 €
10 pcs.
3.2487 €
100 pcs.
2.8322 €
250 pcs.
2.7251 €
1000 pcs.
2.5466 €
*incl. VAT plus shipping costs
Subject to prior sale

Jack, 4781.0000, SCHURTER

IEC Connector C15 for hot conditions 120°C, Rewireable, Straight.

Features

  • Cord connector rewireable
  • Housing material: Thermoplastic, UL 94V-0
  • Protection class: 1
Technical specifications
Filter Property Value
Switch illuminated No
Assembly cable assembly
Rated voltage UL/CSA 250 V
Rated current UL/CSA 15 A
Cable cross-section 1.0 mm²
Cable diameter 8.5 mm
Pin temperature 120 °C
Fuse holder present No
Design straight
Colour black
Pin number 3 pole
Rated voltage IEC 250 V
Product type jack
Line filter present No
IEC designation C15
Rated current IEC 10 A
Type of locking No
Connection screw connection
Power switch available No
Logistics
Property Value
MSL MSL 1
Customs tariff number 85366990
Country of origin CN
Compliance
Property Value
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
