4752.6400 | SCHURTER
Panel socket 4-fold F, 3 pole, snap-in, solder connection, black, 4752.6400
Unit Price (€ / pc.)
10.5315 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
10.53 € *
Price list
Quantity
Price per unit*
1 pcs.
10.5315 €
10 pcs.
9.5914 €
50 pcs.
8.6275 €
100 pcs.
7.7588 €
*incl. VAT plus shipping costs
Subject to prior sale

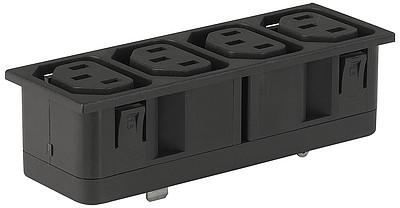

Distribution strip, 4752.6400, SCHURTER
Strip block for snap-in mounting with 4 IEC appliance outlets F.
Features
- Insulation cover on the rear-side
- Pin temperature 70 °C
- Protection class I
Applications
- Suitable for use in equipment
- Suitable for appliances with protection class I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 250 V | |
| Rated voltage IEC | 250 V | |
| Pin number | 3 pole | |
| Power switch available | No | |
| Colour | black | |
| Rated current UL/CSA | 15 A | |
| Version | 4-fold | |
| Connection | solder connection | |
| Assembly | snap-in | |
| Fuse holder present | No | |
| Line filter present | No | |
| Pin temperature | 70 °C | |
| Panel thickness | 2.5 mm | |
| Design | straight | |
| Rated current IEC | 10 A | |
| IEC designation | F | |
| Type of locking | No | |
| Switch illuminated | No | |
| Product type | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
