4752.5200 | SCHURTER

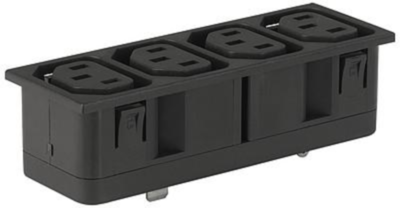

Panel socket 4-fold F, 3 pole, snap-in, plug-in connection, black, 4752.5200
Unit Price (€ / pc.)
10.6624 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
10.66 € *
Price list
Quantity
Price per unit*
1 pcs.
10.6624 €
10 pcs.
9.7104 €
50 pcs.
8.7227 €
100 pcs.
7.8540 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug, 4752.5200, SCHURTER
Strip block for Snap-in mounting with 4 IEC Appliance outlets F.
Features
- Panel mountable
- 1 Function
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 250 V | |
| Rated voltage IEC | 250 V | |
| Pin number | 3 pole | |
| Power switch available | No | |
| Colour | black | |
| Rated current UL/CSA | 15 A | |
| Version | 4-fold | |
| Connection | plug-in connection | |
| Assembly | snap-in | |
| Fuse holder present | No | |
| Line filter present | No | |
| Pin temperature | 70 °C | |
| Panel thickness | 2 mm | |
| Design | straight | |
| Rated current IEC | 10 A | |
| IEC designation | F | |
| Type of locking | No | |
| Switch illuminated | No | |
| Product type | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85366990 |
| Country of origin | CH |
| Original Packaging | Carton with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
