4741.0000 | SCHURTER

Combination element plug/socket C14 + F, 3 pole, free-standing, black, 4741.0000

Order No.: 41F1982
EAN: 4099889863888
MPN:
4741.0000
Series: 4741

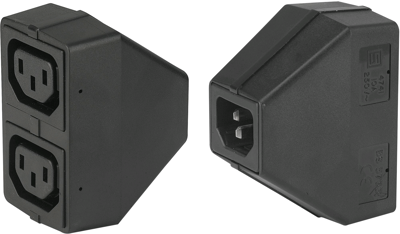

4741.0000 SCHURTER Device Connectors Image 1
4741.0000 SCHURTER Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.7203 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
1,472.03 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
14.7203 €

IEC distribution modules, locked, type Schurter 4741.

Compliant with IEC/EN 60320, stand-alone module with 2 IEC appliance outlets and 1 IEC appliance inlet. Outlets with mechanical interlock; Housing material: thermoplastic, UL 94 V-0, black, 2-pole + ground contact, 10 A/250 VAC (UL/CSA 15 A/250 VAC). Operating temperatures: –25 to +70 °C. Certifications: VDE, UL, CSA.

Type: 4741.0000, IEC distribution module

Technical specifications
Filter Property Value
Assembly free-standing
Switch illuminated No
Power switch available No
Pin number 3 pole
Rated voltage IEC 250 V
Fuse holder present No
Rated current IEC 10 A
Version plug/socket
Pin temperature 70 °C
Type of locking Yes
Design straight
Colour black
Rated voltage UL/CSA 250 V
IEC designation C14 + F
Rated current UL/CSA 10 A
Product type combination element
Logistics
Property Value
Customs tariff number 85366990
Country of origin CZ
Original Packaging Carton with 50 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
