4733.0000 | SCHURTER

Plug E, 3 pole, cable assembly, screw connection, 1.0 mm², black, 4733.0000

Order No.: 41F141
EAN: 4099889862119
MPN:
4733.0000
Series: 4733
4733.0000 SCHURTER Device Connectors Image 1
4733.0000 SCHURTER Device Connectors Image 2
4733.0000 SCHURTER Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
5.3669 € *
Available: 218 pcs.
Next delivery: 150 pcs. on 2025-07-11
Total Price:
5.37 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3669 €
10 pcs.
4.7362 €
100 pcs.
4.1412 €
200 pcs.
3.9865 €
800 pcs.
3.7247 €
*incl. VAT plus shipping costs
Subject to prior sale

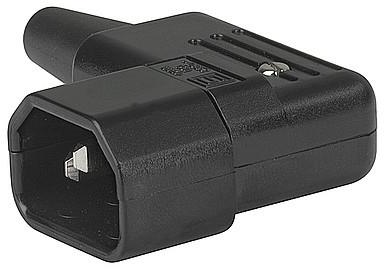

IEC cord connectors, angled, type Schurter 4733.

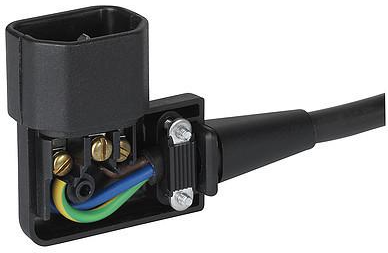

To IEC/EN 60320-2-2, for cable assembly; Pin temperature: up to +70 °C, Connection: screw terminals, 2-pole + ground contact, 10 A/250 VAC. Suitable for equipment of safety class I to IEC 61140. Housing material: thermoplastic, UL 94 V-0, black. Certifications: VDE, UL, CSA, CCC.

Technical attributes (type, max. cable diameter, max. conductor cross-section): 4733.0000, 8.5 mm, 3 x 1.0 mm² (AWG 18)

Technical specifications
Filter Property Value
Switch illuminated No
Assembly cable assembly
Rated voltage UL/CSA 250 V
Rated current UL/CSA 10 A
Cable cross-section 1.0 mm²
Cable diameter 8.5 mm
Pin temperature 70 °C
Fuse holder present No
Design angled
Colour black
Pin number 3 pole
Rated voltage IEC 250 V
Product type plug
Line filter present No
IEC designation E
Rated current IEC 10 A
Type of locking No
Connection screw connection
Power switch available No
Logistics
Property Value
Original Packaging Carton with 100 pieces
Customs tariff number 85366990
Country of origin CZ
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
