4732.0000 | SCHURTER

Plug E, 3 pole, cable assembly, screw connection, 1.0 mm², black, 4732.0000

Order No.: 41F113
EAN: 4099889861761
MPN:
4732.0000
Series: 4732

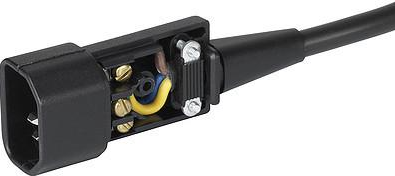

4732.0000 SCHURTER Device Connectors Image 1

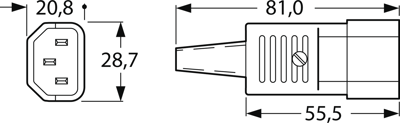

4732.0000 SCHURTER Device Connectors Image 2

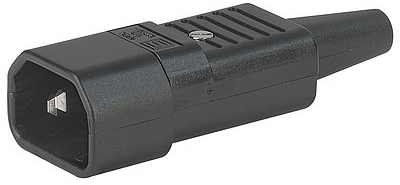

4732.0000 SCHURTER Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
4.9623 € *
Available: 327 pcs.
Next delivery: 200 pcs. on 2025-07-11
Total Price:
4.96 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9623 €
10 pcs.
4.3792 €
100 pcs.
3.8318 €
200 pcs.
3.6771 €
800 pcs.
3.4510 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug, 4732.0000, SCHURTER

IEC Plug E, Cord connector (Rewireable), Straight, max. cable Diameter 8.5 mm.

Features

  • Cord connector
  • 1 Function
  • Housing material: Thermoplastic, UL 94V-0
  • Protection class: 1
Technical specifications
Filter Property Value
Switch illuminated No
Assembly cable assembly
Rated voltage UL/CSA 250 V
Rated current UL/CSA 10 A
Cable cross-section 1.0 mm²
Cable diameter 8.1 mm
Pin temperature 70 °C
Fuse holder present No
Design straight
Colour black
Pin number 3 pole
Rated voltage IEC 250 V
Product type plug
Line filter present No
IEC designation E
Rated current IEC 10 A
Type of locking No
Connection screw connection
Power switch available No
Logistics
Property Value
Original Packaging Carton with 100 pieces
Customs tariff number 85366990
Country of origin CZ
Compliance
Property Value
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
