4724.0300 | SCHURTER
Panel socket F, 3 pole, snap-in, solder connection, black, 4724.0300
Unit Price (€ / pc.)
1.7493 € *
Next delivery: 198 pcs. on 2026-01-23

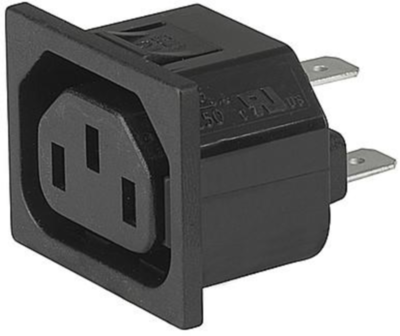

Plug, 4724.0300, SCHURTER
IEC Appliance outlet F Shuttered, Snap-in mounting, Front side, Solder terminals.
Features
- Panel mountable
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder connection | |
| Panel thickness | 1.5 mm | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Colour | black | |
| Type of locking | Yes | |
| Switch illuminated | No | |
| Design | straight | |
| Power switch available | No | |
| Pin temperature | 70 °C | |
| Assembly | snap-in | |
| IEC designation | F | |
| Fuse holder present | No | |
| Pin number | 3 pole | |
| Rated voltage IEC | 250 V | |
| Line filter present | No | |
| Rated voltage UL/CSA | 250 V | |
| Product type | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 100 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
