4719.6300 | SCHURTER

Combination element socket F, 3 pole, snap-in, solder connection, black, 4719.6300

Order No.: 59P6704
EAN: 4099889866520
MPN:
4719.6300
Series: 4719
4719.6300 SCHURTER Device Connectors
Image may differ
Unit Price (€ / pc.)
10.5791 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
2,115.82 € *
*incl. VAT plus shipping costs
Subject to prior sale
200 pcs.
10.5791 €

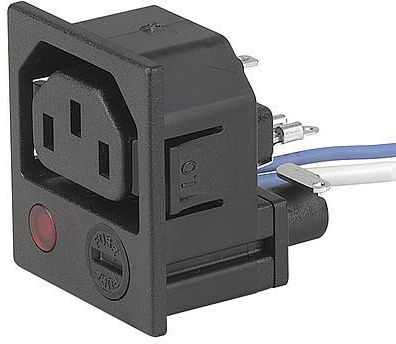

Plug, 4719.6300, SCHURTER

IEC Appliance outlet F shuttered with fuseholder 1-pole.

Features

  • Panel mountable
  • 3 Functions
  • Housing material: Thermoplastic, UL 94V-0
  • Protection class: 1
Technical specifications
Filter Property Value
Rated voltage UL/CSA 250 V
Connection solder connection
Rated voltage IEC 250 V
Colour black
Fuse holder present Yes
Power switch available No
Pin number 3 pole
Panel thickness 2.5 mm
Number of poles fuse holder 1 pole
Switch illuminated No
Type of locking Yes
Design straight
Assembly snap-in
Pin temperature 70 °C
Version socket
Product type combination element
Rated current UL/CSA 10 A
IEC designation F
Line filter present No
Rated current IEC 10 A
Logistics
Property Value
Country of origin CZ
Customs tariff number 85366990
MSL MSL 1
Original Packaging Carton with 100 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
