4719.4300 | SCHURTER

Combination element socket F, 3 pole, snap-in, solder connection, black, 4719.4300

Order No.: 59P6700
EAN: 4099889866483
MPN:
4719.4300
Series: 4719
4719.4300 SCHURTER Device Connectors

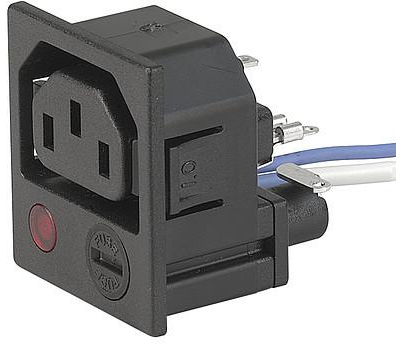

Image may differ
Unit Price (€ / pc.)
10.0912 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
2,018.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
200 pcs.
10.0912 €

Plug, 4719.4300, SCHURTER

IEC Appliance outlet F shuttered with fuseholder 1-pole.

Features

  • Panel mountable
  • 3 Functions
  • Housing material: Thermoplastic, UL 94V-0
  • Protection class: 1
Technical specifications
Filter Property Value
Assembly snap-in
Switch illuminated No
Power switch available No
Pin number 3 pole
Rated voltage IEC 250 V
Fuse holder present Yes
Panel thickness 1.5 mm
Rated current IEC 10 A
Version socket
Line filter present No
Pin temperature 70 °C
Type of locking Yes
Design straight
Colour black
Rated voltage UL/CSA 250 V
Connection solder connection
IEC designation F
Rated current UL/CSA 10 A
Number of poles fuse holder 1 pole
Product type combination element
Logistics
Property Value
Customs tariff number 85366990
MSL MSL 1
Country of origin CZ
Original Packaging Carton with 100 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
