4710.6154 | SCHURTER

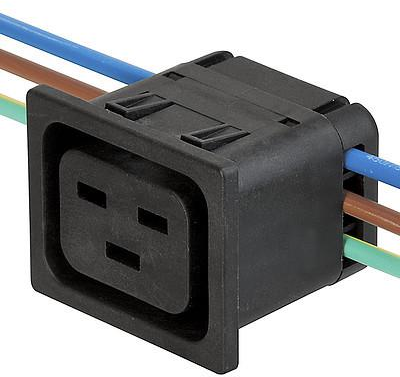

Panel socket J, 3 pole, snap-in, IDC connection, 2.5 mm², black, 4710.6154
Unit Price (€ / pc.)
2.1896 € *
Standard delivery time from the manufacturer is: 19 Weeks
Socket, 4710.6154, SCHURTER
IEC Appliance outlet J, Snap-in mounting, Front side, IDC terminals.
Features
- Panel mountable
- Solder terminals for solid wires
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switch illuminated | No | |
| Assembly | snap-in | |
| Rated voltage UL/CSA | 250 V | |
| Rated current UL/CSA | 20 A | |
| Cable cross-section | 2.5 mm² | |
| Panel thickness | 1.5 mm | |
| Pin temperature | 70 °C | |
| Fuse holder present | No | |
| Design | straight | |
| Colour | black | |
| Pin number | 3 pole | |
| Rated voltage IEC | 250 V | |
| Product type | panel socket | |
| Line filter present | No | |
| IEC designation | J | |
| Rated current IEC | 16 A | |
| Type of locking | Yes | |
| Connection | IDC connection | |
| Power switch available | No |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 50 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85366990 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
