4707.2100 | SCHURTER
Combination element plug C14, 3 pole, screw mounting, plug-in connection, black, 4707.2100
Unit Price (€ / pc.)
9.1392 € *
Standard delivery time from the manufacturer is: 9 Weeks
Plug, 4707.2100, SCHURTER

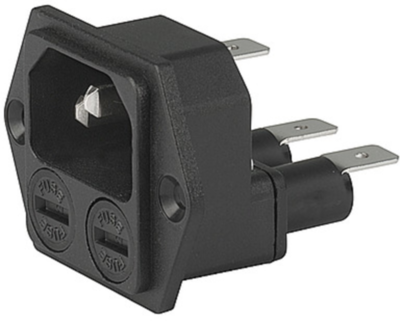

IEC Appliance inlet C14 with fuseholder.
Features
- Panel mountable
- 2 Functions
- V-Lock notch standard
- All single elements are already wired
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Line filter present | No | |
| IEC designation | C14 | |
| Rated voltage UL/CSA | 250 V | |
| Type of locking | Yes | |
| Version | plug | |
| Connection | plug-in connection | |
| Fuse holder present | Yes | |
| Rated current UL/CSA | 10 A | |
| Product type | combination element | |
| Assembly | screw mounting | |
| Power switch available | No | |
| Rated voltage IEC | 250 V | |
| Pin temperature | 70 °C | |
| Panel thickness | 6 mm | |
| Switch illuminated | No | |
| Rated current IEC | 10 A | |
| Pin number | 3 pole | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Original Packaging | Carton with 100 pieces |
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
