4312.0000 | SCHURTER

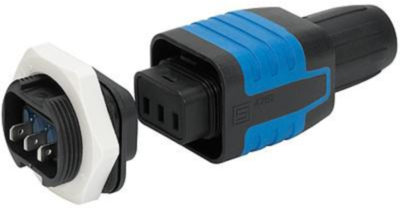

Panel plug S16, 3 pole, cable assembly, plug-in connection, black, 4312.0000
Unit Price (€ / pc.)
9.3772 € *
Standard delivery time from the manufacturer is: 11 Weeks
Plug, 4312.0000, SCHURTER
IEC Appliance inlet with protection degree IP67/IP69K, Screw-on mounting, front side.
Features
- Panel mountable
- Complete set consisting of appliance inlet and outlet
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Fuse holder present | No | |
| Rated current IEC | 10 A | |
| Rated voltage UL/CSA | 250 V | |
| Connection | plug-in connection | |
| Rated voltage IEC | 250 V | |
| Pin temperature | 120 °C | |
| Switch illuminated | No | |
| Product type | panel plug | |
| IEC designation | S16 | |
| Assembly | cable assembly | |
| Rated current UL/CSA | 15 A | |
| Type of locking | No | |
| Pin number | 3 pole | |
| Power switch available | No | |
| Line filter present | No | |
| Design | straight | |
| Colour | black | |
| Cable diameter | 8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| MSL | MSL 1 |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
