4310.0069 | SCHURTER
Jack C13, 3 pole, cable assembly, screw connection, 1.0 mm², black, 4310.0069
Order No.: 59P5811
EAN: 4099889866247
MPN:
4310.0069
This item is no longer available.
As an alternative, we recommend the following item:
Jack C13, 3 pole, cable assembly, screw connection, 1.0 mm², black, 4300.0609
Order No.: 59P5278
Manufacturer: SCHURTER
per pc. 7.6041 € *

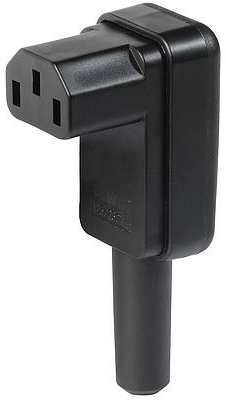

Jack, 4310.0069, SCHURTER
IEC Connector C13, Rewireable, Angled.
Features
- Cord connector angled
- Rewireable cable assembly
- Housing material: PA6, UL 94V-0
- Protection class: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Fuse holder present | No | |
| Rated current IEC | 10 A | |
| Rated voltage UL/CSA | 250 V | |
| Connection | screw connection | |
| Rated voltage IEC | 250 V | |
| Pin temperature | 70 °C | |
| Switch illuminated | No | |
| Product type | jack | |
| IEC designation | C13 | |
| Assembly | cable assembly | |
| Rated current UL/CSA | 15 A | |
| Type of locking | No | |
| Pin number | 3 pole | |
| Power switch available | No | |
| Line filter present | No | |
| Design | angled | |
| Colour | black | |
| Cable diameter | 8 mm | |
| Cable cross-section | 1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| MSL | MSL 1 |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
