4310.0019 | SCHURTER

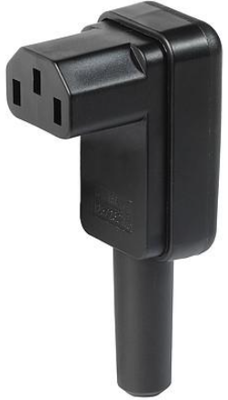

Jack C13, 3 pole, cable assembly, screw connection, 1.0 mm², black, 4310.0019
Order No.: 41F130
EAN: 4099889861839
MPN:
4310.0019
4012-X-AAA0-A-81
This item is no longer available.
As an alternative, we recommend the following item:

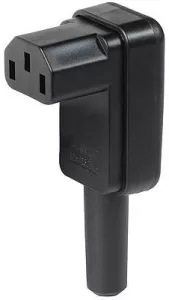

Jack C13, 3 pole, cable assembly, screw connection, 1.0 mm², black, 4300.0609
Order No.: 59P5278
Manufacturer: SCHURTER
per pc. 7.6041 € *
IEC cord connectors, angled, type Schurter/O. Heil 4012.
To IEC/EN 60320-1, for cable assembly, pin temperature up to +70 °C, 2-pole + ground contact, 10 A/250 VAC (VDE), 15 A/250 VAC (UL/CSA); Connection: screw terminals, suitable for safety class I devices. Housing material: polyamide (PA6) to UL 94 V-0. Certifications: VDE, UL, CSA. Note: Anti-kink bushings are available on separate order.
Technical attributes (type, color): 4012-X-AAA0-A-81, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | jack | |
| Pin number | 3 pole | |
| IEC designation | C13 | |
| Colour | black | |
| Connection | screw connection | |
| Assembly | cable assembly | |
| Design | angled | |
| Cable cross-section | 1.0 mm² | |
| Cable diameter | 8 mm | |
| Power switch available | No | |
| Switch illuminated | No | |
| Fuse holder present | No | |
| Line filter present | No | |
| Type of locking | No | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Pin temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
