4304.6224 | SCHURTER

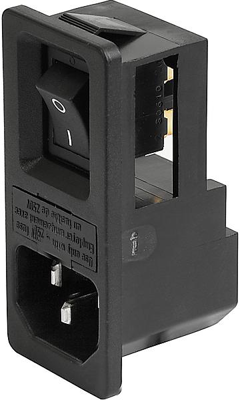

Combination element plug C14, 3 pole, screw mounting, solder connection, black, 4304.6224
Unit Price (€ / pc.)
9.2701 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
9.27 € *
Price list
Quantity
Price per unit*
1 pcs.
9.2701 €
10 pcs.
8.4371 €
50 pcs.
7.5922 €
100 pcs.
6.8306 €
*incl. VAT plus shipping costs
Subject to prior sale
IEC Appliance Inlet, 4304.6224, SCHURTER
IEC Appliance Inlet with line switch and fuseholder.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage IEC | 250 V | |
| Pin temperature | 70 °C | |
| Power switch available | Yes | |
| Colour | black | |
| Assembly | screw mounting | |
| Number of poles fuse holder | 1 pole | |
| Rated voltage UL/CSA | 250 V | |
| Rated current UL/CSA | 10 A | |
| Fuse holder present | Yes | |
| Design | straight | |
| IEC designation | C14 | |
| Connection | solder connection | |
| Product type | combination element | |
| Pin number | 3 pole | |
| Version | plug | |
| Type of locking | No | |
| Rated current IEC | 10 A | |
| Line filter present | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
