4304.6092 | SCHURTER
Combination element plug C14, 3 pole, screw mounting, plug-in connection, black, 4304.6092
Unit Price (€ / pc.)
8.6513 € *
Available: 497 pcs.
Total Price:
8.65 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6513 €
10 pcs.
7.6041 €
50 pcs.
7.1043 €
150 pcs.
6.7711 €
*incl. VAT plus shipping costs
Subject to prior sale

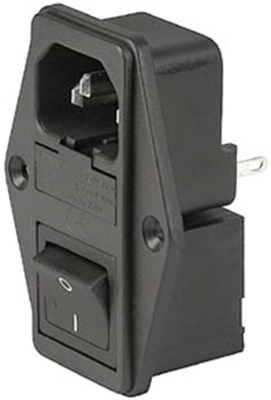

Plug, 4304.6092, SCHURTER
IEC Appliance inlet C14 with line switch 2 pole and with fuseholder.
Features
- Panel mountable
- Fuseholder for fuselinks
- Housing material: PA6, UL 94V-0
- Protection class: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 250 V | |
| Rated voltage IEC | 250 V | |
| Pin number | 3 pole | |
| Power switch available | Yes | |
| Swich colour | black | |
| Colour | black | |
| Number of poles switch | 2 pole | |
| Rated current UL/CSA | 10 A | |
| Version | plug | |
| Connection | plug-in connection | |
| Assembly | screw mounting | |
| Fuse holder present | Yes | |
| Line filter present | No | |
| Pin temperature | 70 °C | |
| Design | straight | |
| Rated current IEC | 10 A | |
| Number of poles fuse holder | 2 pole | |
| IEC designation | C14 | |
| Type of locking | No | |
| Switch illuminated | No | |
| Product type | combination element |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
