4304.6090 | SCHURTER

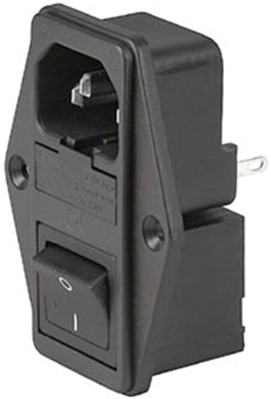

Combination element plug C14, 3 pole, screw mounting, plug-in connection, black, 4304.6090
Unit Price (€ / pc.)
8.5561 € *
Available: 44 pcs.
Total Price:
8.56 € *
Price list
Quantity
Price per unit*
1 pcs.
8.5561 €
10 pcs.
7.5208 €
50 pcs.
7.0210 €
150 pcs.
6.6878 €
500 pcs.
6.3546 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug, 4304.6090, SCHURTER
IEC Appliance Inlet C14 with line switch 2 pole and Fuseholder 1-pole.
Features
- Panel mountable
- Housing material: PA6, UL 94V-0
- Protection class: 2
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Version | plug | |
| Pin number | 3 pole | |
| Number of poles fuse holder | 2 pole | |
| Number of poles switch | 2 pole | |
| Rated voltage IEC | 250 V | |
| Assembly | screw mounting | |
| Product type | combination element | |
| Rated voltage UL/CSA | 250 V | |
| Swich colour | black | |
| Line filter present | No | |
| Rated current UL/CSA | 10 A | |
| Fuse holder present | Yes | |
| Connection | plug-in connection | |
| IEC designation | C14 | |
| Power switch available | Yes | |
| Design | straight | |
| Pin temperature | 70 °C | |
| Type of locking | No | |
| Rated current IEC | 10 A | |
| Switch illuminated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
