4304.6075 | SCHURTER

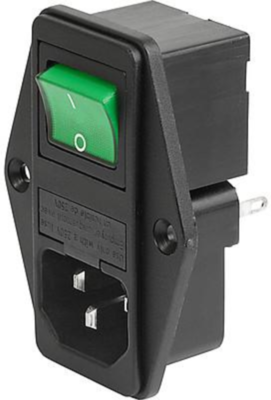

Combination element plug C14, 3 pole, screw mounting, solder connection, black, 4304.6075
Unit Price (€ / pc.)
6.1166 € *
Standard delivery time from the manufacturer is: 10 Weeks
Plug, 4304.6075, SCHURTER
IEC Appliance inlet C14 with line switch with fuseholder 1-pole.
Features
- Fuseholder for fuse-links
- Housing material: PA6, UL 94V-0
- Protection class: 2
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of poles fuse holder | 1 pole | |
| Pin temperature | 70 °C | |
| Fuse holder present | Yes | |
| Assembly | screw mounting | |
| Rated voltage UL/CSA | 250 V | |
| Connection | solder connection | |
| Power switch available | Yes | |
| Number of poles switch | 2 pole | |
| Design | straight | |
| Version | plug | |
| Pin number | 3 pole | |
| Type of locking | No | |
| IEC designation | C14 | |
| Switch illuminated | No | |
| Rated current UL/CSA | 10 A | |
| Rated voltage IEC | 250 V | |
| Line filter present | No | |
| Product type | combination element | |
| Rated current IEC | 10 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
