4304.6020 | SCHURTER

Combination element plug C14, 3 pole, screw mounting, plug-in connection, black, 4304.6020

Order No.: 41F1504
EAN: 4099889862232
MPN:
4304.6020
1062-X-BB91-A-1004
Series: 1062

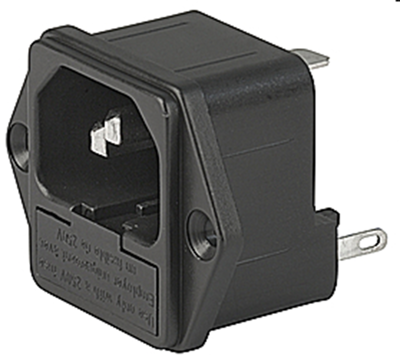

4304.6020 SCHURTER Device Connectors Image 1
4304.6020 SCHURTER Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
5.2479 € *
Available: 90 pcs.
Next delivery: 100 pcs. on 2025-10-17
Total Price:
5.25 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2479 €
10 pcs.
4.6291 €
100 pcs.
4.0579 €
200 pcs.
3.8913 €
1000 pcs.
3.5819 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug, 4304.6020, SCHURTER

IEC Appliance inlet C14 with fuseholder 2-pole.

Features

  • Panel mountable
  • Fuseholder for fuselinks
  • Housing material: PA6, UL 94V-0
  • Protection class: 1
Technical specifications
Filter Property Value
Number of poles fuse holder 2 pole
Pin temperature 70 °C
Fuse holder present Yes
Assembly screw mounting
Rated voltage UL/CSA 250 V
Connection plug-in connection
Power switch available No
Design straight
Version plug
Pin number 3 pole
Type of locking No
IEC designation C14
Switch illuminated No
Rated current UL/CSA 10 A
Rated voltage IEC 250 V
Line filter present No
Product type combination element
Rated current IEC 10 A
Colour black
Logistics
Property Value
Country of origin DE
Original Packaging Carton with 50 pieces
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
