4303.1062 | SCHURTER

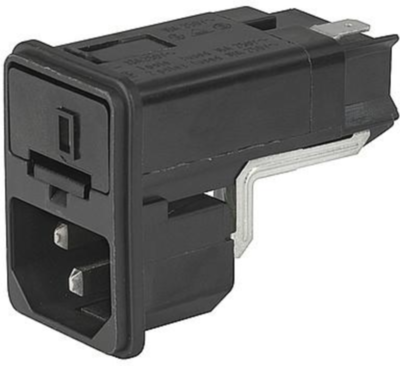

Combination element plug C14, 3 pole, snap-in, plug-in connection, black, 4303.1062

Order No.: 59P5528
EAN: 4099889865752
MPN:
4303.1062
Series: KEC
4303.1062 SCHURTER Device Connectors
Image may differ
Unit Price (€ / pc.)
5.4859 € *
Available: 96 pcs.
Total Price:
5.49 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4859 €
10 pcs.
5.0456 €
50 pcs.
4.5934 €
100 pcs.
4.1412 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug, 4303.1062, SCHURTER

IEC Appliance inlet C14 with fuseholder and voltage selector.

Features

  • 3 Functions
  • Quick connect terminals
  • Housing material: Thermoplastic, black, UL 94V-0
  • Protection class: 1
Technical specifications
Filter Property Value
Number of poles fuse holder 2 pole
Pin temperature 70 °C
Panel thickness 1.5 mm
Fuse holder present Yes
Assembly snap-in
Rated voltage UL/CSA 250 V
Connection plug-in connection
Power switch available No
Design straight
Version plug
Pin number 3 pole
Type of locking No
IEC designation C14
Switch illuminated No
Rated current UL/CSA 10 A
Rated voltage IEC 250 V
Line filter present No
Product type combination element
Rated current IEC 10 A
Colour black
Logistics
Property Value
Country of origin CZ
Original Packaging Carton with 50 pieces
Customs tariff number 85366990
MSL MSL 1
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
