4300.0922 | SCHURTER

Plug I, 3 pole, cable assembly, screw connection, 2.5 mm², black, 4300.0922

Order No.: 59P5285
EAN: 4099889864984
MPN:
4300.0922
Series: 0922

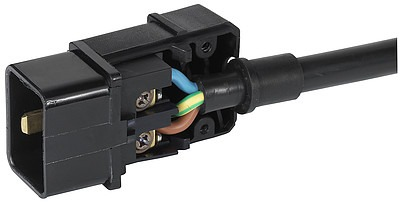

4300.0922 SCHURTER Device Connectors Image 1

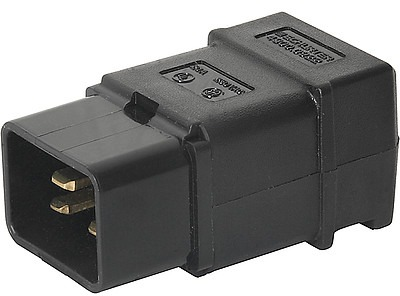

4300.0922 SCHURTER Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
19.5755 € *
Available: 49 pcs.
Total Price:
19.58 € *
Price list
Quantity
Price per unit*
1 pcs.
19.5755 €
10 pcs.
17.2312 €
50 pcs.
16.0531 €
200 pcs.
15.1011 €
400 pcs.
14.5299 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug, 4300.0922, SCHURTER

IEC Plug I, Cord connector (Rewireable), Straight.

Features

  • 1 Function
  • Cord connector
  • Protection class: 1
  • Housing material: Thermoplastic, black, UL 94V-0
Technical specifications
Filter Property Value
Rated voltage IEC 250 V
Pin temperature 70 °C
Power switch available No
Colour black
Assembly cable assembly
Rated voltage UL/CSA 250 V
Rated current UL/CSA 20 A
Cable diameter 12 mm
Fuse holder present No
Design straight
IEC designation I
Connection screw connection
Switch illuminated No
Product type plug
Pin number 3 pole
Type of locking No
Rated current IEC 16 A
Cable cross-section 2.5 mm²
Line filter present No
Logistics
Property Value
Customs tariff number 85366990
MSL MSL 1
Original Packaging Carton with 50 pieces
Country of origin US
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
