4300.0921 | SCHURTER

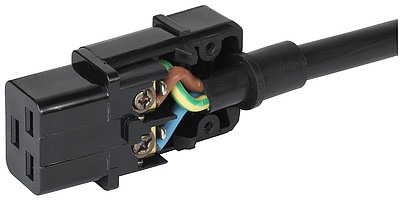

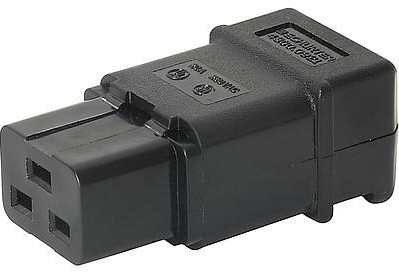

Jack C19, 3 pole, cable assembly, screw connection, 2.5 mm², black, 4300.0921
Unit Price (€ / pc.)
19.7421 € *
Next delivery: 100 pcs. on 2025-10-24
Total Price:
19.74 € *
Price list
Quantity
Price per unit*
1 pcs.
19.7421 €
10 pcs.
17.3740 €
50 pcs.
16.1840 €
200 pcs.
15.2558 €
400 pcs.
14.6489 €
*incl. VAT plus shipping costs
Subject to prior sale
Jack, 4300.0921, SCHURTER
IEC Connector C19, Rewireable, Straight.
Features
- 1 Function
- Cord connector
- Protection class: 1
- Housing material: Thermoplastic, black, UL 94V-0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 250 V | |
| Product type | jack | |
| Type of locking | No | |
| Cable diameter | 12 mm | |
| Connection | screw connection | |
| Assembly | cable assembly | |
| Pin number | 3 pole | |
| IEC designation | C19 | |
| Cable cross-section | 2.5 mm² | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Rated current IEC | 16 A | |
| Rated current UL/CSA | 20 A | |
| Rated voltage IEC | 250 V | |
| Colour | black | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | No | |
| Design | straight |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Original Packaging | Carton with 50 pieces |
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
