4300.0609 | SCHURTER
Jack C13, 3 pole, cable assembly, screw connection, 1.0 mm², black, 4300.0609
Unit Price (€ / pc.)
   7.6041 €  *
   Available: 73 pcs.
 Total Price:
  7.60 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 7.6041 €
 10 pcs.
 6.6878 €
 90 pcs.
 5.8786 €
 180 pcs.
 5.6525 €
 1035 pcs.
 5.1170 €
  *incl. VAT plus shipping costs
  Subject to prior sale
 Jack, 4300.0609, SCHURTER

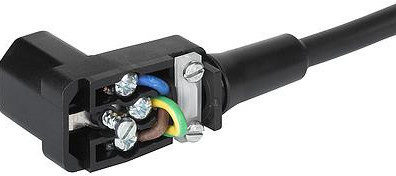

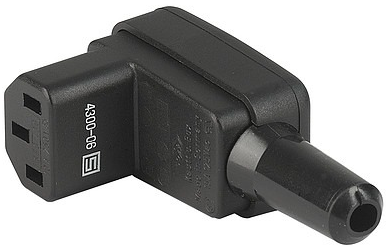

IEC Connector C13, Rewireable, Angled.
Features
- 1 Function
- Cord connector rewireable
- Protection class: 1
- Housing material: Thermoplastic, black, UL 94V-0
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Rated voltage IEC | 250 V | |
| Pin temperature | 70 °C | |
| Power switch available | No | |
| Colour | black | |
| Assembly | cable assembly | |
| Rated voltage UL/CSA | 125 V | |
| Rated current UL/CSA | 15 A | |
| Cable diameter | 8.5 mm | |
| Fuse holder present | No | |
| Design | angled | |
| IEC designation | C13 | |
| Connection | screw connection | |
| Switch illuminated | No | |
| Product type | jack | |
| Pin number | 3 pole | |
| Type of locking | No | |
| Rated current IEC | 10 A | |
| Cable cross-section | 1.0 mm² | |
| Line filter present | No |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 45 pieces |
| Country of origin | IT |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
