4300.0301 | SCHURTER

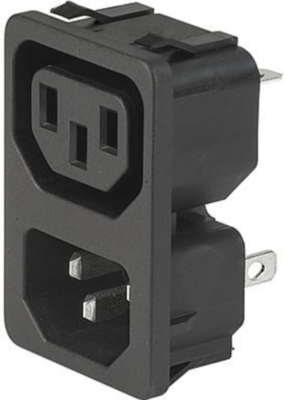

Combination element plug/socket C14 + F, 3 pole, snap-in, solder connection, black, 4300.0301
Unit Price (€ / pc.)
   2.8560 €  *
   Available: 147 pcs.
 Total Price:
  2.86 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 2.8560 €
 10 pcs.
 2.5228 €
 100 pcs.
 2.2134 €
 200 pcs.
 2.1301 €
 1000 pcs.
 1.9516 €
  *incl. VAT plus shipping costs
  Subject to prior sale
 Distributor strip, 4300.0301, SCHURTER
Distribution unit for Snap-in mounting with 1 IEC Appliance inlet C14 and 1 appliance outlet F.
Features
- 1 Function
- Protection class: 1
- Housing material: Thermoplastic, black, UL 94V-0
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Rated voltage IEC | 250 V | |
| Pin temperature | 70 °C | |
| Power switch available | No | |
| Colour | black | |
| Assembly | snap-in | |
| Rated voltage UL/CSA | 125 V | |
| Rated current UL/CSA | 15 A | |
| Panel thickness | 2 mm | |
| Fuse holder present | No | |
| Design | straight | |
| IEC designation | C14 + F | |
| Connection | solder connection | |
| Switch illuminated | No | |
| Product type | combination element | |
| Pin number | 3 pole | |
| Version | plug/socket | |
| Rated current IEC | 10 A | |
| Line filter present | No |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 50 pieces |
| Country of origin | CN |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
