4300.0105 | SCHURTER

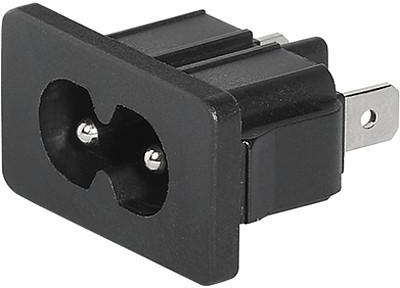

Panel plug C8, 2 pole, snap-in, plug-in connection, black, 4300.0105
Unit Price (€ / pc.)
0.8092 € *
Available: 22 pcs.
Total Price:
0.81 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8092 €
10 pcs.
0.7497 €
100 pcs.
0.7021 €
200 pcs.
0.6664 €
1000 pcs.
0.5950 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug, 4300.0105, SCHURTER
IEC Appliance inlet C8, Quick-connect terminals.
Features
- Protection class: 2
- Housing material: PA6, UL 94V-0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin temperature | 70 °C | |
| Panel thickness | 2 mm | |
| Fuse holder present | No | |
| Assembly | snap-in | |
| Rated voltage UL/CSA | 250 V | |
| Connection | plug-in connection | |
| Power switch available | No | |
| Design | straight | |
| Pin number | 2 pole | |
| Type of locking | No | |
| IEC designation | C8 | |
| Switch illuminated | No | |
| Rated current UL/CSA | 2.5 A | |
| Rated voltage IEC | 250 V | |
| Line filter present | No | |
| Product type | panel plug | |
| Rated current IEC | 2.5 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
