4300.0101 | SCHURTER
Panel plug C6, 3 pole, screw mounting, PCB connection, black, 4300.0101
Order No.: 59P5275
EAN: 4099889864922
MPN:
4300.0101
This item is no longer available.
As an alternative, we recommend the following item:
Panel plug C6, 3 pole, screw mounting, PCB connection, black, 6160.0002
Order No.: 59P7678
Manufacturer: SCHURTER
per pc. 3.4153 € *
Plug, 4300.0101, SCHURTER

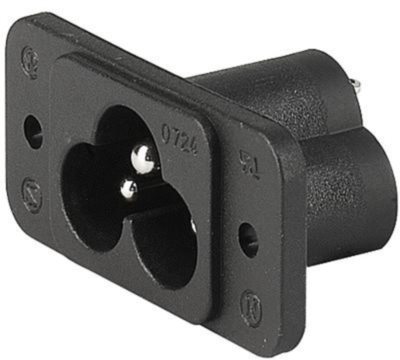

IEC Appliance inlet C6, Screw-on mounting, Front side, Solder terminals for PCB.
Features
- 1 Function
- For PCB mounting
- Protection class: 1
- Housing material: Thermoplastic, black, UL 94V-0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 250 V | |
| Connection | PCB connection | |
| Rated voltage IEC | 250 V | |
| Colour | black | |
| Fuse holder present | No | |
| Power switch available | No | |
| Pin number | 3 pole | |
| Panel thickness | 4 mm | |
| Switch illuminated | No | |
| Type of locking | No | |
| Design | angled | |
| Assembly | screw mounting | |
| Pin temperature | 70 °C | |
| Product type | panel plug | |
| Rated current UL/CSA | 2.5 A | |
| IEC designation | C6 | |
| Line filter present | No | |
| Rated current IEC | 2.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
