4300.0100 | SCHURTER

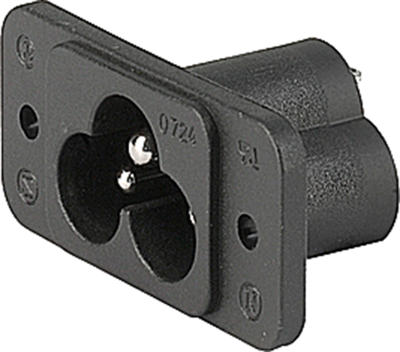

Panel plug C6, 3 pole, screw mounting, solder connection, black, 4300.0100
Order No.: 41F438
EAN: 4099889864236
MPN:
4300.0100
This item is no longer available.
As an alternative, we recommend the following item:
Panel plug C6, 3 pole, screw mounting, PCB connection, black, 6160.0034
Order No.: 59P7699
Manufacturer: SCHURTER
per pc. 1.9278 € *
Plug, 4300.0100, SCHURTER
IEC Appliance Inlet C6, Screw-on Mounting, Front Side, Solder terminals
Features
- Panel mountable
- 1 Function
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Pin number | 3 pole | |
| IEC designation | C6 | |
| Colour | black | |
| Connection | solder connection | |
| Assembly | screw mounting | |
| Design | straight | |
| Power switch available | No | |
| Switch illuminated | No | |
| Fuse holder present | No | |
| Line filter present | No | |
| Type of locking | No | |
| Panel thickness | 4 mm | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 2.5 A | |
| Rated current UL/CSA | 2.5 A | |
| Pin temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
