3-152-196 | SCHURTER
Appliance inlet C19, 3 pole, cable assembly, screw connection, 1.5 mm², white, 3-152-196
Unit Price (€ / pc.)
9.5795 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
9.58 € *
Price list
Quantity
Price per unit*
1 pcs.
9.5795 €
10 pcs.
8.8655 €
50 pcs.
8.3657 €
100 pcs.
7.8897 €
250 pcs.
7.5208 €
*incl. VAT plus shipping costs
Subject to prior sale

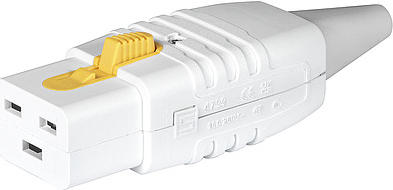

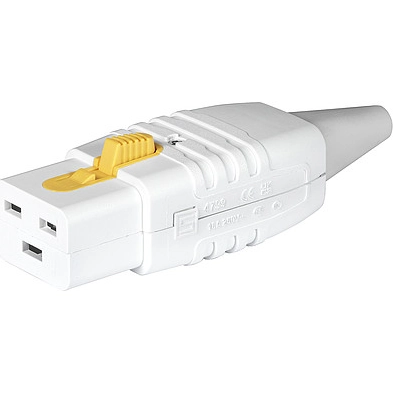

Cable connector, 3-152-196, SCHURTER
The 3-152-196 rewireable cord connector with V-Lock interlocking system prevents unintentional removal of power.
Features
- Screw-on mounting
- Simple cable assembly
- Reusable
- Halogen free
Technical specifications
| Colour | white | |
| Pin temperature | 70 °C | |
| Cable diameter | 11 mm | |
| Type of locking | Yes | |
| Rated current UL/CSA | 20 A | |
| Assembly | cable assembly | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 16 A | |
| Rated voltage IEC | 250 V | |
| IEC designation | C19 | |
| Fuse holder present | No | |
| Cable cross-section | 1.5 mm² | |
| Pin number | 3 pole | |
| Version | socket | |
| Design | straight | |
| Power switch available | No | |
| Connection | screw connection | |
| Line filter present | No |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 50 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
