3-142-747 | SCHURTER
Jack C15, 3 pole, cable assembly, screw connection, 0.75-1.5 mm², black, 3-142-747
Unit Price (€ / pc.)
10.7576 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
10.76 € *
Price list
Quantity
Price per unit*
1 pcs.
10.7576 €
10 pcs.
9.7818 €
50 pcs.
8.8060 €
100 pcs.
7.9254 €
*incl. VAT plus shipping costs
Subject to prior sale

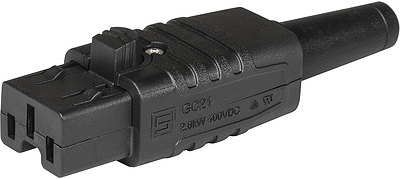

Cable plug, 3-142-747, SCHURTER
The IEC plug is suitable for 400 VDC systems and can be rewired as needed. It has a straight design and can accommodate cables with a maximum diameter of 9.2 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage IEC | 400 V | |
| Pin number | 3 pole | |
| Power switch available | No | |
| Colour | black | |
| Cable cross-section | 0.75-1.5 mm² | |
| Connection | screw connection | |
| Assembly | cable assembly | |
| Fuse holder present | No | |
| Line filter present | No | |
| Design | straight | |
| Cable diameter | 6.4 to 9.2 mm | |
| IEC designation | C15 | |
| Switch illuminated | No | |
| Product type | jack |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
| Original Packaging | Carton with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
