3-122-078 | SCHURTER

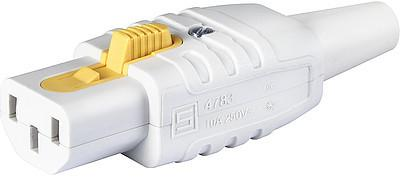

Jack C13, 3 pole, cable assembly, screw connection, 1.5 mm², white, 3-122-078

Order No.: 41F1470
EAN: 4099889862171
MPN:
3-122-078
Series: 4783
3-122-078 SCHURTER Device Connectors
Image may differ
Unit Price (€ / pc.)
6.2951 € *
Available: 20 pcs.
Total Price:
6.30 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2951 €
10 pcs.
5.7358 €
50 pcs.
5.2122 €
100 pcs.
4.6886 €
*incl. VAT plus shipping costs
Subject to prior sale

Jack, 3-122-078, SCHURTER

IEC Connector C13, Rewireable, Straight.

Features

  • Cord connector
  • With V-Lock interlocking system
  • Housing material: Thermoplastic, UL 94V-0
  • Protection class: 1
Technical specifications
Filter Property Value
Switch illuminated No
Assembly cable assembly
Rated voltage UL/CSA 250 V
Rated current UL/CSA 15 A
Cable cross-section 1.5 mm²
Cable diameter 10 mm
Pin temperature 70 °C
Fuse holder present No
Design straight
Colour white
Pin number 3 pole
Rated voltage IEC 250 V
Product type jack
Line filter present No
IEC designation C13
Rated current IEC 10 A
Type of locking Yes
Connection screw connection
Power switch available No
Logistics
Property Value
Original Packaging Carton with 50 pieces
Customs tariff number 85366990
Country of origin IN
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
