3-122-077 | SCHURTER

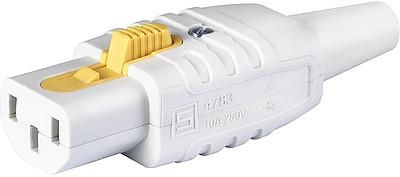

Jack C13, 3 pole, cable assembly, screw connection, 0.75 mm², white, 3-122-077
Unit Price (€ / pc.)
6.4855 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
6.49 € *
Price list
Quantity
Price per unit*
1 pcs.
6.4855 €
10 pcs.
5.9143 €
50 pcs.
5.3669 €
100 pcs.
4.8314 €
*incl. VAT plus shipping costs
Subject to prior sale
Jack, 3-122-077, SCHURTER
IEC Connector C13, Rewireable, Straight.
Features
- Cord connector
- With V-Lock interlocking system
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin temperature | 70 °C | |
| Fuse holder present | No | |
| Cable diameter | 8.5 mm | |
| Assembly | cable assembly | |
| Rated voltage UL/CSA | 250 V | |
| Connection | screw connection | |
| Power switch available | No | |
| Design | straight | |
| Pin number | 3 pole | |
| Type of locking | Yes | |
| IEC designation | C13 | |
| Switch illuminated | No | |
| Rated current UL/CSA | 15 A | |
| Rated voltage IEC | 250 V | |
| Line filter present | No | |
| Product type | jack | |
| Rated current IEC | 10 A | |
| Colour | white | |
| Cable cross-section | 0.75 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Original Packaging | Carton with 50 pieces |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
