3-122-073 | SCHURTER

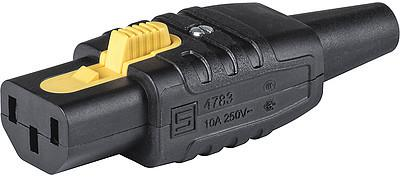

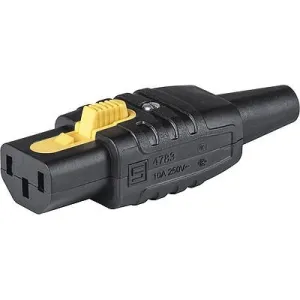

Jack C13, 3 pole, cable assembly, screw connection, 0.75 mm², black, 3-122-073

Order No.: 41F1465
EAN: 4099889862126
MPN:
3-122-073
Series: 4783
3-122-073 SCHURTER Device Connectors
Image may differ
Unit Price (€ / pc.)
5.7358 € *
Available: 33 pcs.
Total Price:
5.74 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7358 €
10 pcs.
5.0456 €
100 pcs.
4.4387 €
200 pcs.
4.2483 €
*incl. VAT plus shipping costs
Subject to prior sale

Jack, 3-122-073, SCHURTER

IEC Connector C13, Rewireable, Straight.

Features

  • Cord connector
  • With V-Lock interlocking system
  • Housing material: Thermoplastic, UL 94V-0
  • Protection class: 1
Technical specifications
Filter Property Value
Rated voltage IEC 250 V
Pin temperature 70 °C
Power switch available No
Colour black
Assembly cable assembly
Rated voltage UL/CSA 250 V
Rated current UL/CSA 15 A
Cable diameter 8.5 mm
Fuse holder present No
Design straight
IEC designation C13
Connection screw connection
Switch illuminated No
Product type jack
Pin number 3 pole
Type of locking Yes
Rated current IEC 10 A
Cable cross-section 0.75 mm²
Line filter present No
Logistics
Property Value
Customs tariff number 85366990
Original Packaging Carton with 50 pieces
Country of origin IN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
