3-109-088 | SCHURTER

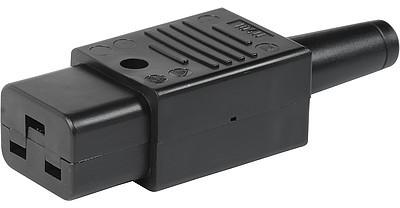

Jack C19, 3 pole, cable assembly, screw connection, 1.5 mm², black, 3-109-088
No longer available from manufacturer
Unit Price (€ / pc.)
8.4728 € *
Next delivery: 50 pcs. on 2025-10-03
Total Price:
8.47 € *
Price list
Quantity
Price per unit*
1 pcs.
8.4728 €
10 pcs.
7.7945 €
50 pcs.
7.1043 €
100 pcs.
6.3903 €
*incl. VAT plus shipping costs
Subject to prior sale
IEC jack C19, 3-109-088, SCHURTER
Features
- Cord connector straight
- Rewireable cable assembly
- Protection class I
- Pin temperature 70 °C
- Max. wire size 1.5 mm² / 14 AWG
Applications
- Suitable for use in equipment
- Suitable for appliances with protection class I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Pin number | 3 pole | |
| Cable diameter | 8.5-10 mm | |
| Cable cross-section | 1.5 mm² | |
| Rated voltage IEC | 250 V | |
| Assembly | cable assembly | |
| Product type | jack | |
| Rated voltage UL/CSA | 250 V | |
| Line filter present | No | |
| Rated current UL/CSA | 20 A | |
| Fuse holder present | No | |
| Connection | screw connection | |
| IEC designation | C19 | |
| Power switch available | No | |
| Design | straight | |
| Pin temperature | 70 °C | |
| Type of locking | No | |
| Rated current IEC | 16 A | |
| Switch illuminated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
