3-109-087 | SCHURTER

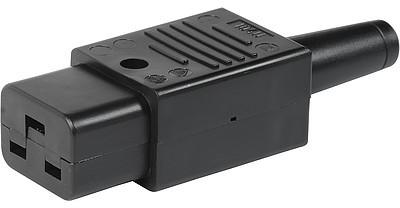

Jack C19, 3 pole, cable assembly, screw connection, 1.5 mm², black, 3-109-087

Order No.: 41F865
EAN: 4099891580858
MPN:
3-109-087
Series: 0104U
3-109-087 SCHURTER Device Connectors
Image may differ

No longer available from manufacturer

Unit Price (€ / pc.)
8.2229 € *
Next delivery: 100 pcs. on 2025-11-14
Total Price:
8.22 € *
Price list
Quantity
Price per unit*
1 pcs.
8.2229 €
10 pcs.
7.5684 €
50 pcs.
6.8901 €
100 pcs.
6.1999 €
*incl. VAT plus shipping costs
Subject to prior sale

IEC jack C19, 3-109-087, SCHURTER

Features

  • Cord connector straight
  • Rewireable cable assembly
  • Protection class I
  • Pin temperature 70 °C
  • Max. wire size 1.5 mm² / 14 AWG

Applications

  • Suitable for use in equipment
  • Suitable for appliances with protection class I
Technical specifications
Filter Property Value
Pin temperature 70 °C
Fuse holder present No
Cable diameter 10 mm
Assembly cable assembly
Rated voltage UL/CSA 250 V
Connection screw connection
Power switch available No
Design straight
Pin number 3 pole
Type of locking No
IEC designation C19
Switch illuminated No
Rated current UL/CSA 20 A
Rated voltage IEC 250 V
Line filter present No
Product type jack
Rated current IEC 16 A
Colour black
Cable cross-section 1.5 mm²
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
