3-104-866 | SCHURTER
Combination element plug C18, 2 pole, snap-in, solder connection, black, 3-104-866
Unit Price (€ / pc.)
9.8175 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
9.82 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8175 €
10 pcs.
8.9369 €
50 pcs.
8.0444 €
100 pcs.
7.2471 €
*incl. VAT plus shipping costs
Subject to prior sale

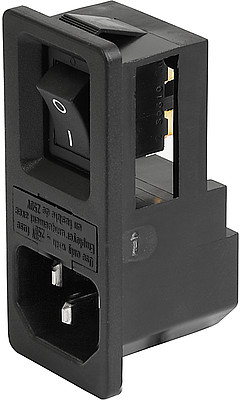

IEC Appliance Inlet, 3-104-866, SCHURTER
IEC Appliance Inlet with line switch and fuseholder.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of poles fuse holder | 1 pole | |
| Pin temperature | 70 °C | |
| Fuse holder present | Yes | |
| Assembly | snap-in | |
| Rated voltage UL/CSA | 250 V | |
| Connection | solder connection | |
| Power switch available | Yes | |
| Number of poles switch | 2 pole | |
| Design | straight | |
| Version | plug | |
| Pin number | 2 pole | |
| Type of locking | No | |
| IEC designation | C18 | |
| Rated current UL/CSA | 10 A | |
| Rated voltage IEC | 250 V | |
| Line filter present | No | |
| Product type | combination element | |
| Rated current IEC | 10 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
