3-104-048 | SCHURTER

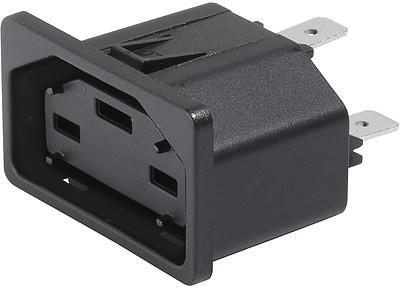

Panel socket standard sheet 1, 3 pole, snap-in, PCB connection, black, 3-104-048
Unit Price (€ / pc.)
2.7965 € *
Standard delivery time from the manufacturer is: 21 Weeks
Plug, 3-104-048, SCHURTER
Plug for PCBs, angled, 2-pole, Code B, pink.
Features
- Protected against mismating
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Pin number | 3 pole | |
| IEC designation | standard sheet 1 | |
| Colour | black | |
| Connection | PCB connection | |
| Assembly | snap-in | |
| Design | straight | |
| Power switch available | No | |
| Switch illuminated | No | |
| Fuse holder present | No | |
| Line filter present | No | |
| Type of locking | No | |
| Panel thickness | 2 mm | |
| Rated voltage IEC | 400 V | |
| Rated voltage UL/CSA | 400 V | |
| Rated current IEC | 8.8 A | |
| Rated current UL/CSA | 8.8 A | |
| Pin temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Carton with 50 pieces |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
