3-104-045 | SCHURTER

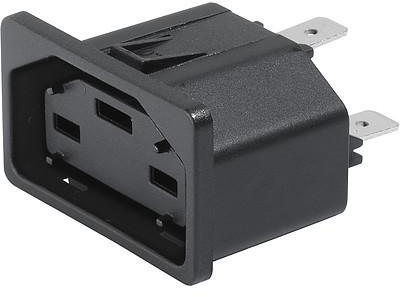

Panel socket standard sheet 1, 3 pole, snap-in, PCB connection, black, 3-104-045
Unit Price (€ / pc.)
2.7965 € *
Standard delivery time from the manufacturer is: 21 Weeks
Plug, 3-104-045, SCHURTER
IEC Socket-outlet 400 VDC, Snap-in mounting, Front side, PCB-terminals.
Features
- Panel mountable
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Line filter present | No | |
| Switch illuminated | No | |
| Rated voltage UL/CSA | 400 V | |
| Colour | black | |
| IEC designation | standard sheet 1 | |
| Connection | PCB connection | |
| Panel thickness | 1.5 mm | |
| Type of locking | No | |
| Design | straight | |
| Rated current UL/CSA | 8.8 A | |
| Assembly | snap-in | |
| Fuse holder present | No | |
| Pin temperature | 105 °C | |
| Rated voltage IEC | 400 V | |
| Product type | panel socket | |
| Pin number | 3 pole | |
| Rated current IEC | 8.8 A | |
| Power switch available | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
| Original Packaging | Carton with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
