3-103-874 | SCHURTER

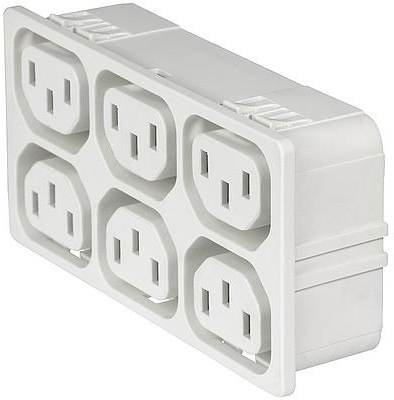

Panel socket 6-fold F, 3 pole, snap-in, plug-in connection, white, 3-103-874
Unit Price (€ / pc.)
7.0091 € *
Standard delivery time from the manufacturer is: 19 Weeks
Strip block, 3-103-874, SCHURTER
Strip block for Snap-in mounting with up to 6 IEC Appliance Outlets F.
Features
- Compact design
- Compact solution for intelligent PDU applications
- Suitable for use in equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin temperature | 70 °C | |
| Panel thickness | 1.5 mm | |
| Fuse holder present | No | |
| Assembly | snap-in | |
| Rated voltage UL/CSA | 250 V | |
| Connection | plug-in connection | |
| Power switch available | No | |
| Design | straight | |
| Version | 6-fold | |
| Pin number | 3 pole | |
| Type of locking | No | |
| IEC designation | F | |
| Switch illuminated | No | |
| Rated current UL/CSA | 15 A | |
| Rated voltage IEC | 250 V | |
| Line filter present | No | |
| Product type | panel socket | |
| Rated current IEC | 10 A | |
| Colour | white |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
