3-101-687 | SCHURTER

Built-in appliance socket F, 3 pole, snap-in, PCB connection, black, 3-101-687

Order No.: 41F185
EAN: 4099889863635
MPN:
3-101-687
Series: 6600-5

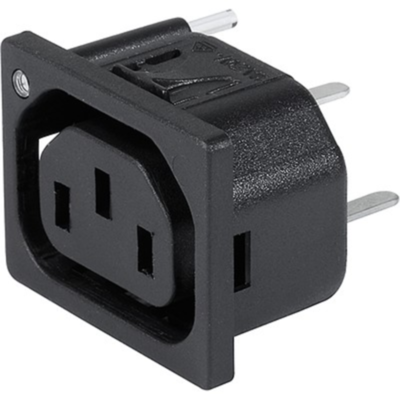

3-101-687 SCHURTER Device Connectors Image 1
3-101-687 SCHURTER Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
1.7136 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
1.71 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.7136 €

Socket, 3-101-687, SCHURTER

IEC Appliance outlet F, Integrated Light Pipes, PCB terminals, Color coding.

Features

  • Panel mountable
  • Pre-assembled light pipes
  • For PCB mounting
  • Housing material: Thermoplastic, UL 94V-0
  • Protection class: 1
Technical specifications
Switch illuminated No
Colour black
Pin temperature 70 °C
Type of locking Yes
Rated current UL/CSA 15 A
Assembly snap-in
Rated voltage UL/CSA 250 V
Rated current IEC 10 A
Rated voltage IEC 250 V
IEC designation F
Fuse holder present No
Panel thickness 2 mm
Pin number 3 pole
Version socket
Design straight
Power switch available No
Connection PCB connection
Line filter present No
Logistics
Country of origin CH
Customs tariff number 85366990
Original Packaging Carton with 50 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
