3-101-151 | SCHURTER

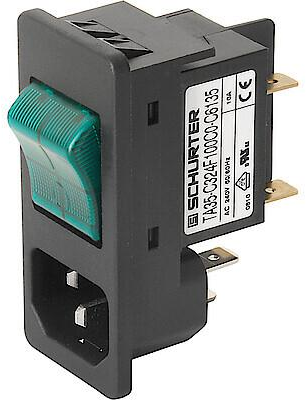

Combination element plug C14, 3 pole, snap-in mounting, plug-in connection, black, 3-101-151
Order No.: 59P0135
EAN: 4099891581732
MPN:
3-101-151
6135-C324FJ20C0-000-C6135-4414-000
Series: 6135
Unit Price (€ / pc.)
25.2637 € *
Standard delivery time from the manufacturer is: 10 Weeks
IEC plug C14, 3-101-151, SCHURTER
Features
- Unwired
- Snap-in version front side
- Protection class I
- Circuit breaker type TA35
Applications
- Suitable for use in equipment
- Suitable for appliances with protection class I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | snap-in mounting | |
| Switch illuminated | Yes | |
| Power switch available | Yes | |
| Pin number | 3 pole | |
| Rated voltage IEC | 250 V | |
| Fuse holder present | No | |
| Panel thickness | 2.5 mm | |
| Rated current IEC | 10 A | |
| Version | plug | |
| Line filter present | No | |
| Pin temperature | 70 °C | |
| Type of locking | No | |
| Number of poles switch | 2 pole | |
| Design | straight | |
| Colour | black | |
| Rated voltage UL/CSA | 250 V | |
| Swich colour | green/transparent | |
| Connection | plug-in connection | |
| IEC designation | C14 | |
| Rated current UL/CSA | 15 A | |
| Product type | combination element |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
